Canon Dial 35 Half-Frame Camera – AS-IS/Display/Repairs

Canon Dial 35 – Half Frame

Vintage 1960s – Beautiful design.

Unfortunately, the camera does not work. The winder does not wind which is the key to the whole camera for it to operate and take pictures.

Due to its nice condition, it can be a great display piece or if you can find someone to fix the winder then it will function as the camera can be used manually.

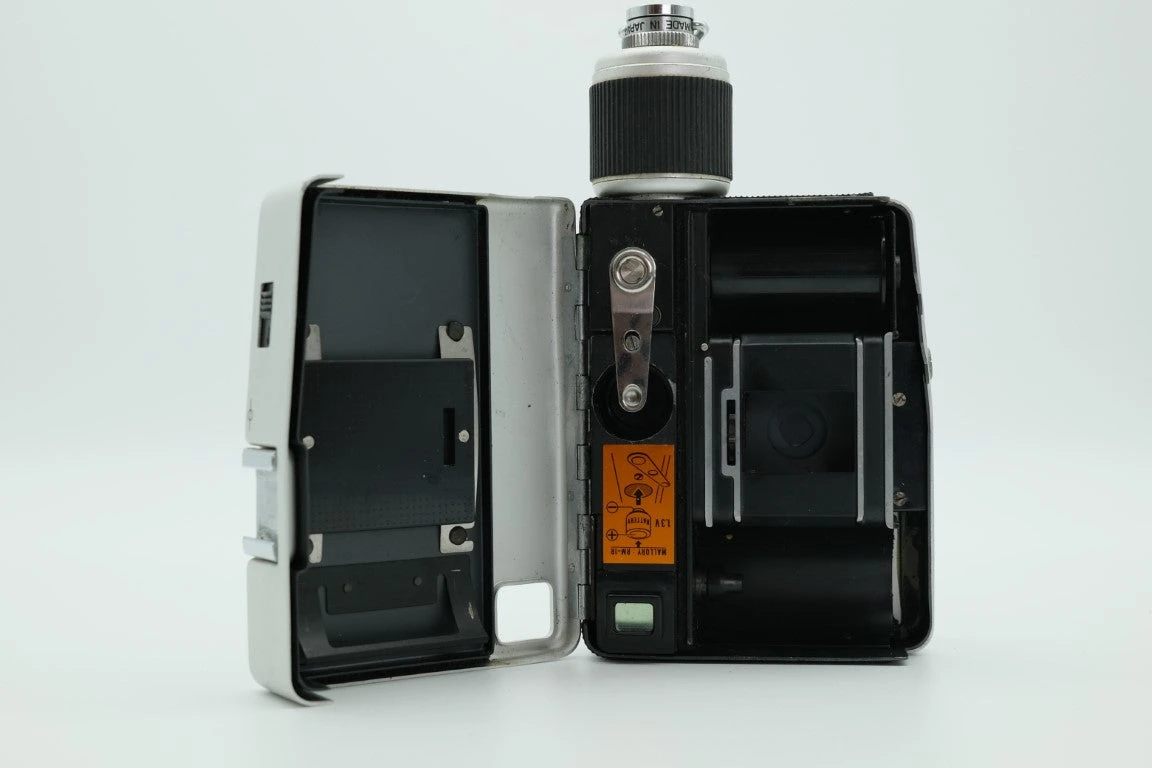

The battery compartment is clean if you can find 1.3 V H-P mercury battery for the light meter but it is not necessary.

Body Condition Grading:
B – Good to Great

Lens Grading:
B – Clean with no fungus but has specks of dust (does not affect images)

Function Grading:
F – Not Working for parts

Specs:

Film: 35mm 24×18mm Half-frame
Shutter: Seikosha 1/30–1/250s+B, with Flash sync
Film speed: 8–500 ASA

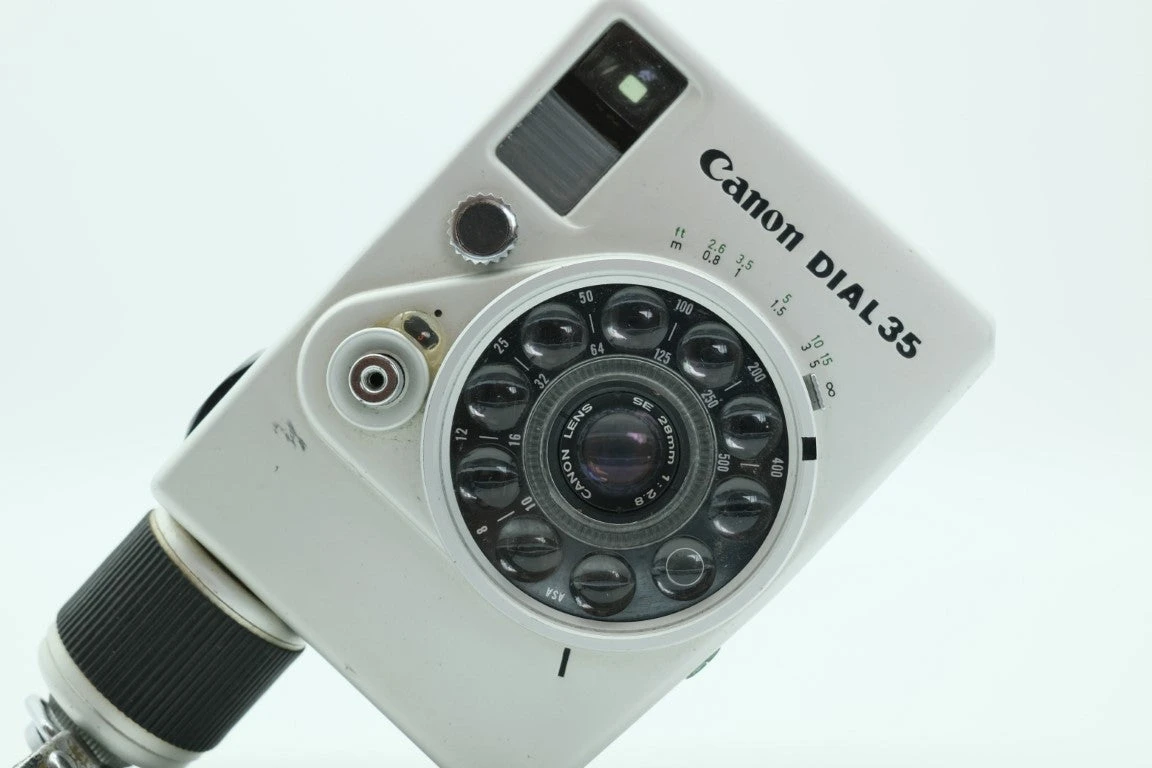

Lens: Canon SE 28mm f/2.8 (5 elements in 3 groups), focus down to 0.8m

After opening camera back, insertion onto spool. Advances automatically to frame 1 with spring motor. Fully-wound spring motor powers film advance for about 20 consecutive exposures. Continuous shooting speed at 2 frames per sec.After opening camera back, insertion onto spool. Advances automatically to frame 1 with spring motor. Fully-wound spring motor powers film advance for about 20 consecutive exposures. Continuous shooting speed at 2 frames per sec.

Automatic rewind with fully-wound spring motor (rewind R summary set) and shutter summary.
